Installation place: Italy - PerugiaInstallation type: Feed

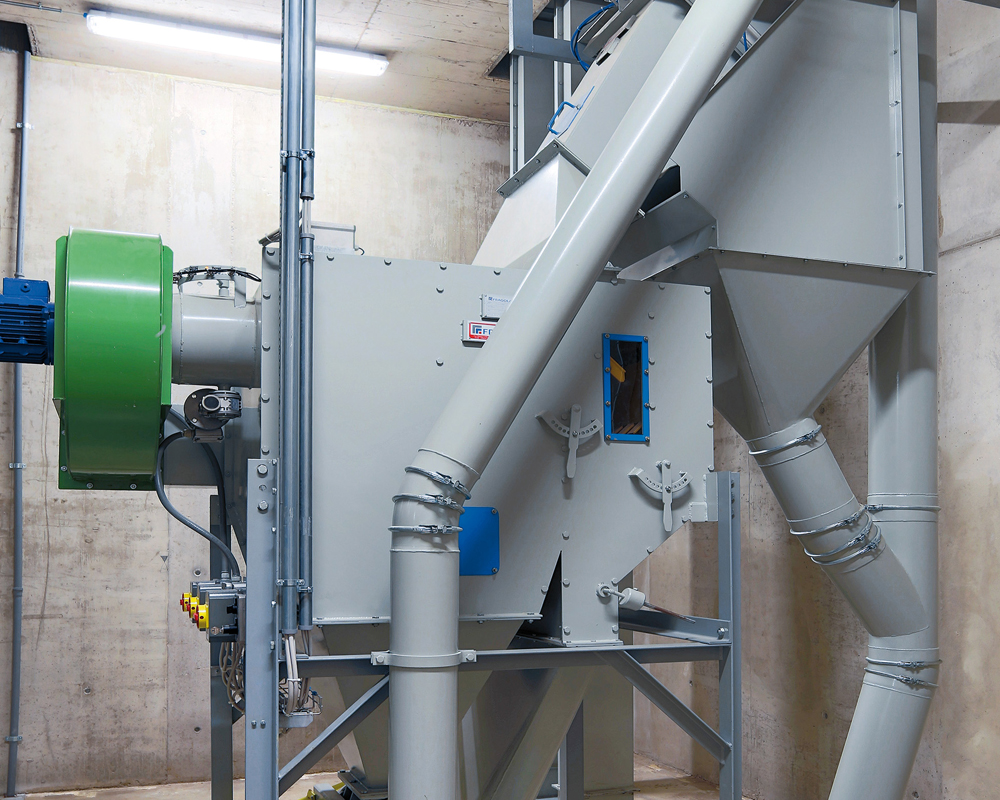

- Raw material intake by trucks with N°.2 pits and cleaning line, capacity of 70 t/h.

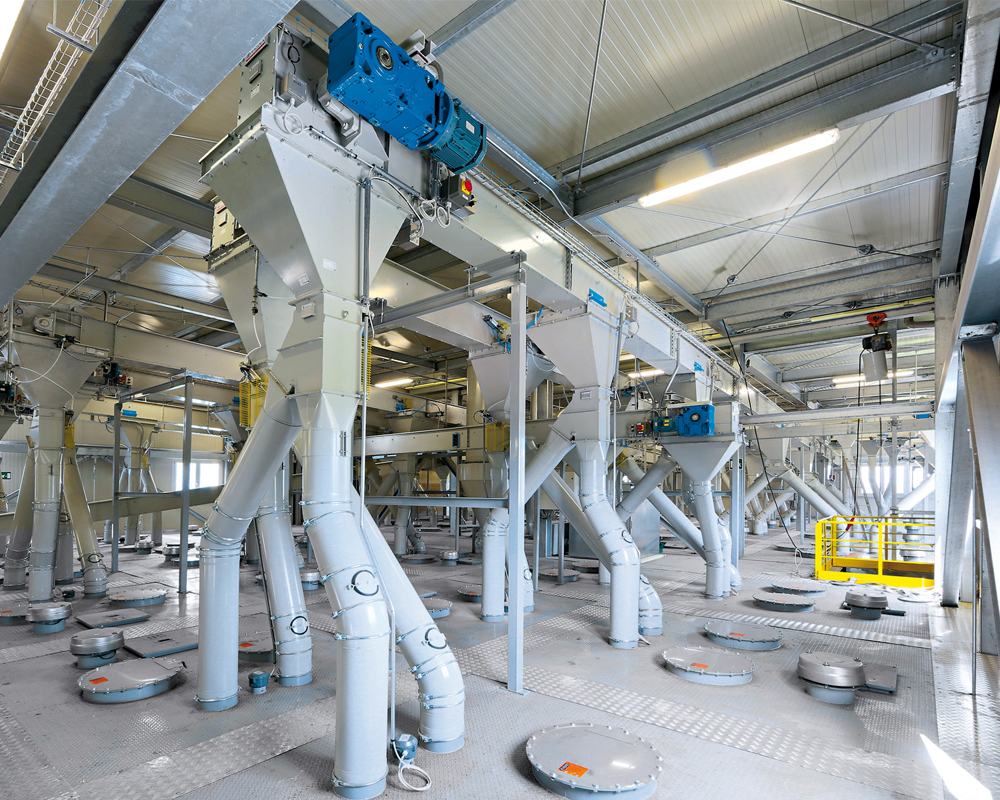

- Cereal and meal storage and batching, with a total capacity of 2500 t, in N°.42 silos and N°.4 weighing scales each with a 2 t capacity.
- Supplement batching in big bags, equipped with N°.2 weighing scales.
- Micro-ingredient batching, equipped with N°.1 weighing scale.
- N°.7 liquid storage tanks, overall capacity of 170 m3 with 1 batching scale and transfer lines to the continuous mixer and to the horizontal mixer.
- Grinding line with hammer mill complete with sieves that can be rapidly changed while the machine is running, 160 Kw installed power, with inverter-run electric motor.

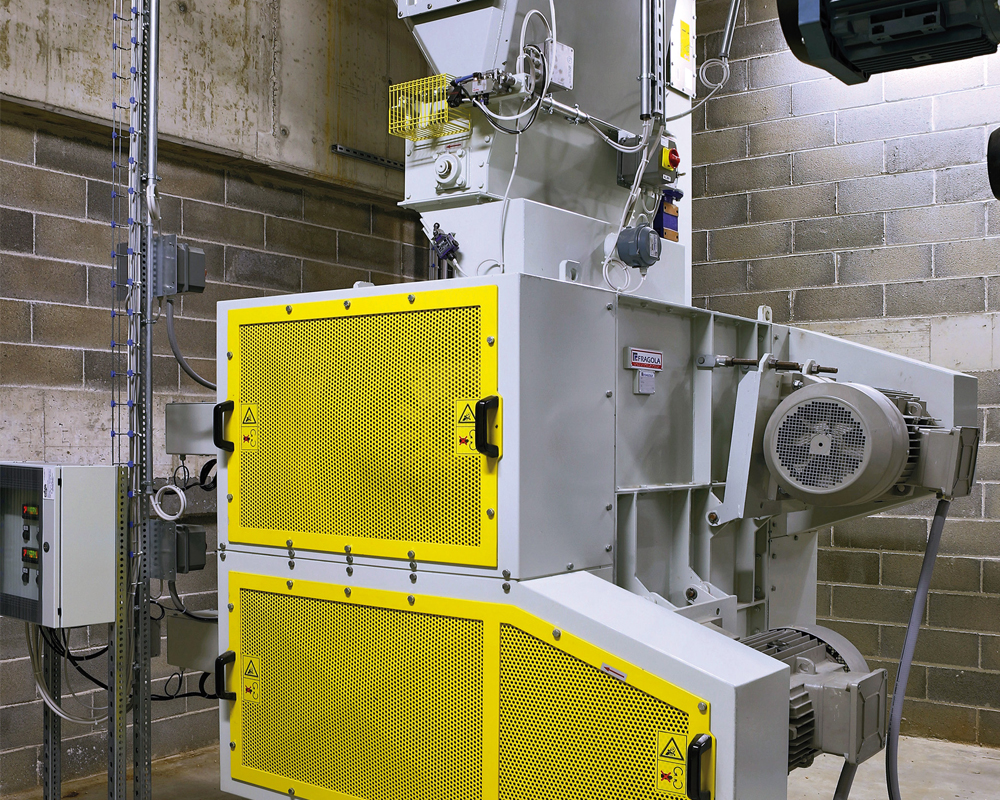

- Grinding line with double roller mill, equipped with vibrating screens for selecting the grinded product.
- N°.2 mixing lines with horizontal paddle mixers, with a working capacity of 5 m3 each.
- N°.1 pelleting line, capacity of 10÷12 t/h, fitted with a crumbler roller mill with remote roller adjustment.
- N°.1 pelleting line, capacity of 10÷12 t/h, with product sanitation. Space projected for a 3rd pelleting line.

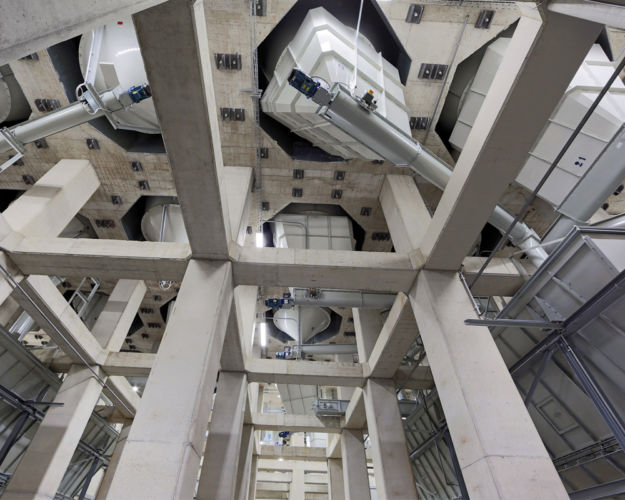

- Finished product storage, in N°.24 silos, with overall capacity of 545 t.
- N°.2 automatic bagging and palletizing production lines, N°.1 big bag filling and weighing line.
- All 24 silos can simultaneously feed the 3 bagging lines and the bulk outloading station with the possibility of screening and weighbridge.
- Fully automatic management and supervision of the whole plant by PC-PLC using leading technologies, lot traceability, and tele-assistance for remote control.
