Installation place: VENEZUELA
Installation type: Feed
VENEZUELA
  • Receipt of raw materials by truck, with an operating capacity of 70 t/h.
  • Grain storage with a total capacity of 13,200 t, meal storage with a total capacity of 1,600 t.
  • Grain and meal batching with a total capacity of 132 t in N°.6 silos, plus N°. 1 weighing scale with a 1 t capacity.
  • Storage and batching of supplements, with N°. 1 weighing scale.
  • N°.2 liquid storage tanks with 1 batching scale and conveyor lines to the horizontal mixer.
  • Grinding line with hammer mill, installed power 90 Kw, with an inverter-driven electric motor.
  • N°.1 mixing line with a horizontal paddle mixer with a 2.6 m3 effective capacity.
  • N°.1 pelleting line with a production capacity of 5 t/h and space projected for a second line.

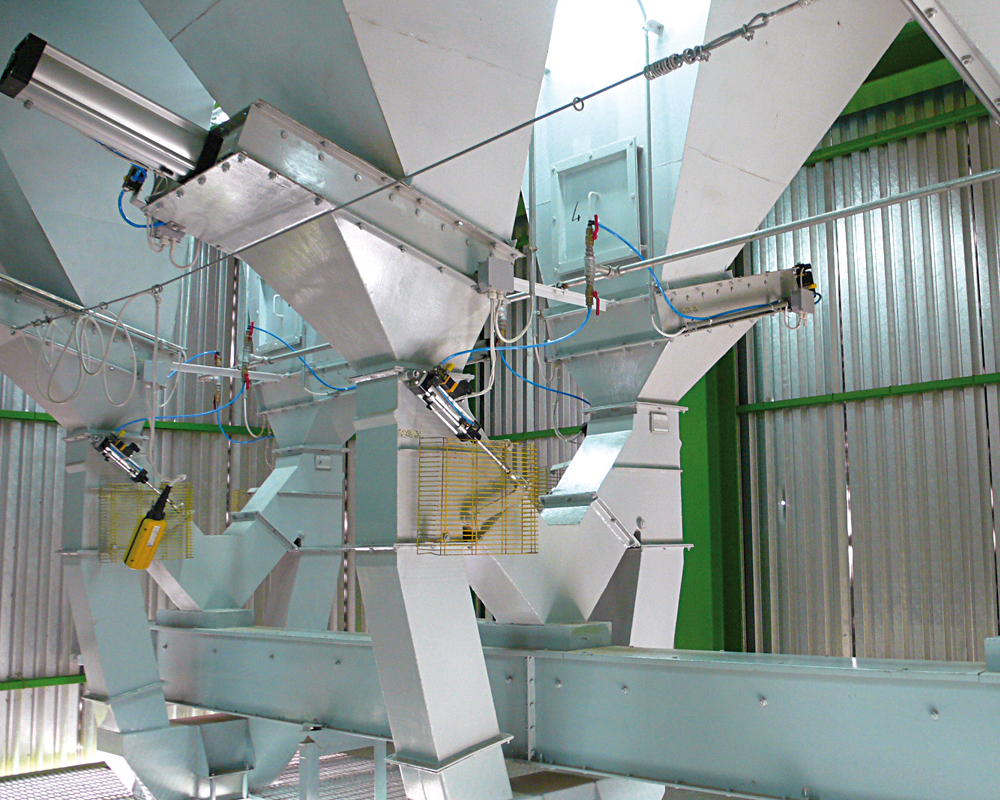

  • Finished product storage with a capacity of 96 t in N°.6 silos, with N°.1 bagging line and N°.1 line for bulk outloading onto trucks.
  • Fully automatic plant management and supervision via PC-PLC using leading technology. Tele-assistance for remote control.

Does this installation reflect your needs?

If the New animal feed production plant 10 tons|h installation reflects your needs and you would like more information, use the form below and one of our operators will contact you to answer your every question.
